T6EE Drive Train Denison Vane Pumps Parker Denison Replacement

China T6EE Drive Train Denison Vane Pumps Parker Denison Replacement supplier
T6EE Drive Train Denison Vane Pumps Parker Denison Replacement supplier T6EE Drive Train Denison Vane Pumps Parker Denison Replacement supplier T6EE Drive Train Denison Vane Pumps Parker Denison Replacement supplier T6EE Drive Train Denison Vane Pumps Parker Denison Replacement supplier T6EE Drive Train Denison Vane Pumps Parker Denison Replacement supplier

Large Image :  T6EE Drive Train Denison Vane Pumps Parker Denison Replacement

Product Details:

Place of Origin: CHINA
Brand Name: RENOWELL
Certification: CE, ISO9001
Model Number: T6EE, T6EE+T6C, T6EE+T6CC

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 2-5 Working days for sample Order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 UNITS / MONTH
Contact Now
Detailed Product Description
Condition: New Aftermarket Replacement Structure Type: Hydraulic Vane Pump
Standard: Standard As Original Power: Hydraulic
Pressure: High Pressure Noise: Low Noise
Single Pump Model: T6EE, T6EES, T7EE, T7EES Max Pressure: 28Mpa
Max Rotation Speed: 2800 R/min Application: Engineering Machinery, Rubber And Plastics Machinery Etc
Warranty: 1 Year Sample Order: Acceptable

Renowell T6EE Drive Train Vane Pump Hydraulic Pump Replacement

Drive train units are available in a variety of different displacements with multiple shaft, porting, adapter, and coupling options.



Drive Train Vane Pumps are in a huge demand now a days for machines where both vane pumps (fixeddisplacement ) & variable displacement pumps are to be used. This pumps have a special piggy backtype construction where one dose not need two prime movers for two different variety of pumps.



  T6 T7 Double Pump Exploded View
NO. Part T6EE Drive Train Denison Vane Pumps Parker Denison Replacement
1 Shaft
2 Straight Key
3 Hexagon head bolt
4 Front cover
5 Shaft Seal
6 Cir clip for shaft
7 Ball Bearing
8 Cir clip for hole
9 Rectangle seal ring
10 Front Cartridge
11 Middle body
12 Rear Cartridge
13 Rectangle seal ring
14 Rear Cover
15 Hexagon head bolt



Technic data

T6CC -25 -17 -1 R 2 -C 1 10
Series Flow Code Flow Code Shaft type Rotation Outlet position Design No. Sealing level Port Dimensions
T7BB T7BBS B03, B04, B05, B06, B07, B08, B10, B12, B15 B03, B04, B05, B06, B07, B08, B10, B12, B15 See of shaft code R or L See pictures C 1-S1 Nitril rubber 00 or 01 See Installation dimensions
5-S5 Fluono or Viton rubber
T67CB B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31 B03, B04, B05, B06, B07, B08, B10, B12, B15 No option
T6CC B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31 B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31 00, 01, 10,11 See Installation dimensions
T67DB B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61 B03, B04, B05, B06, B07, B08, B10, B12, B15
T6DC B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61 B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31
T67EB B42, B45, B50, B52, B57, B62, B66, B72, B85 B03, B04, B05, B06, B07, B08, B10, B12, B15
T6EC B42, B45, B50, B52, B57, B62, B66, B72, B85 B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31
T6ED B42, B45, B50, B52, B57, B62, B66, B72, B85 B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61

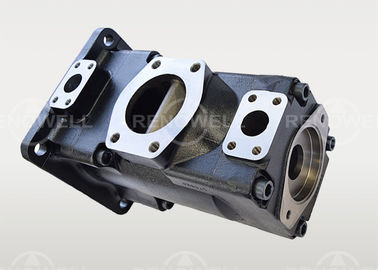

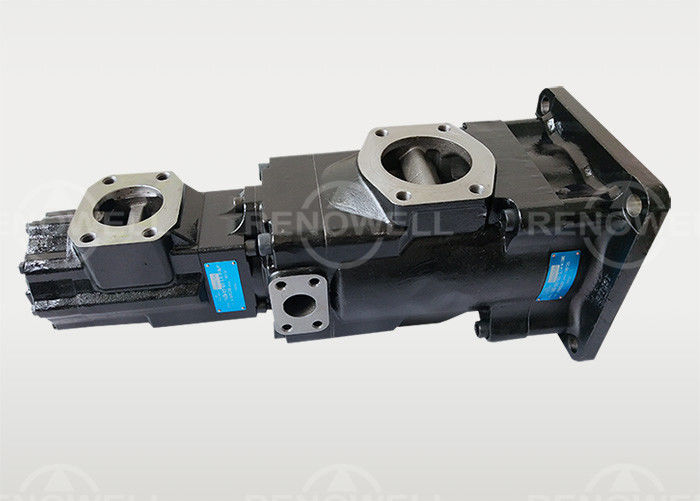

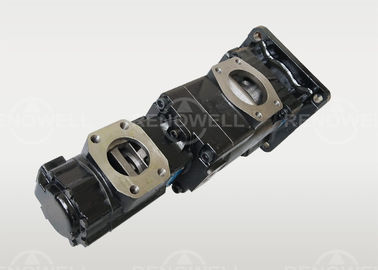

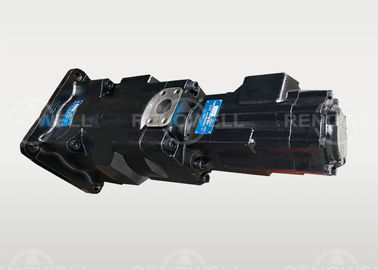

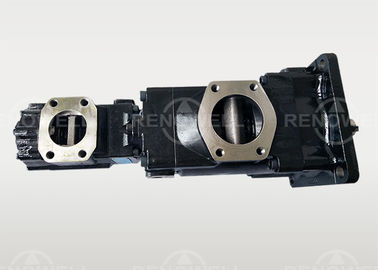

Products Pictures
T6EE Drive Train Denison Vane Pumps Parker Denison Replacement
