High Performance Vickers Vane Pump 2520VQ 3520VQ 4520VQ CE Approval

Certification
Good quality Denison Vane Pumps for sales
Good quality Denison Vane Pumps for sales
I'm Online Chat Now

High Performance Vickers Vane Pump 2520VQ 3520VQ 4520VQ CE Approval

China High Performance Vickers Vane Pump 2520VQ 3520VQ 4520VQ CE Approval supplier
High Performance Vickers Vane Pump 2520VQ 3520VQ 4520VQ CE Approval supplier High Performance Vickers Vane Pump 2520VQ 3520VQ 4520VQ CE Approval supplier High Performance Vickers Vane Pump 2520VQ 3520VQ 4520VQ CE Approval supplier High Performance Vickers Vane Pump 2520VQ 3520VQ 4520VQ CE Approval supplier High Performance Vickers Vane Pump 2520VQ 3520VQ 4520VQ CE Approval supplier

Large Image :  High Performance Vickers Vane Pump 2520VQ 3520VQ 4520VQ CE Approval

Product Details:

Place of Origin: CHINA
Brand Name: RENOWELL
Certification: CE, ISO9001
Model Number: 2520VQ, 3520VQ, 4520VQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 2-5 Working days for sample Order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 UNITS / MONTH
Contact Now
Detailed Product Description
Condition: New Aftermarket Replacement Structure Type: Hydraulic Vane Pump
Standard: Standard As Original Power: Hydraulic
Pressure: High Pressure Noise: Low Noise
Max Pressure: 21 Mpa Max Rotation Speed: 2700 R/min
Application: Engineering Machinery, Rubber And Plastics Machinery Etc Warranty: 1 Year
Sample Order: Acceptable

China Vickers VQ Double Vane Pump 2520VQ; 3520VQ; 4520VQ Hydraulic Vane Pump

Characteritics

High Performance Intravane Pumps for plastic injection machinery, Shoe machinery, Tool machinery, Die casting machinery and Metallurge equipment.

1. Intravane pumps with hydraulic balancing structure provide more stable performance and longer life since less pressure from vane on stator.

2. Twelve vane system provide low amplitude flow pulsation resulting in low system noise characteristics.

3. Verious displacement and shafts with 4 different outlet opposite position make operation more flexible.

4. The cartridge is independent of the drive shaft, allowing for easy servicing without remore the pump from its mounting.


Products Features

25VQ 21 A (F) -1 A 20 L
Code of series Displacement codes Pump port connection Mounting type Shaft extension Outlet port pisition Design No Direction of rotation
20VQ 2,3,4,5,6,7,8,9,10,11,12,14 A-SAE No marks:Flange Mounting F:Foot Mounting 1-Straight shaft with key (from cover end pump) 30 (from shaft end pump)
    4-Bolted Flange   151-Spline shaft A-Opposition of inlet   L-counterclockwise rotation
25VQ 10,12,14,15,17,19,21     1-Straight shaft with key B-Counterclockwise 90 from inlet 20 No marks:Clockwise rotation
35VQ 21,25,30,32,35,38,45     86-Heavy-duty straight shaft with key C-The same side of inlet
45VQ 42,45,50,57,60,66,75     11-Spline shaft D-Clockwise 90 from inlet

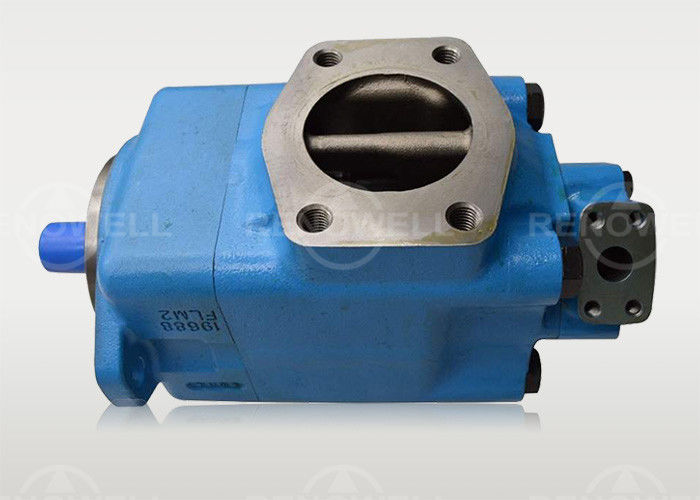

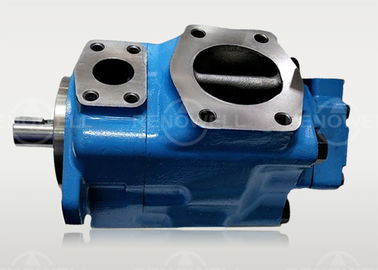

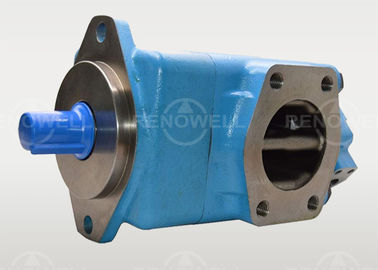

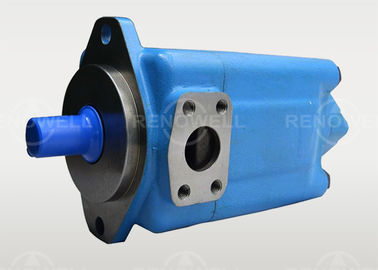

Products Pictures
