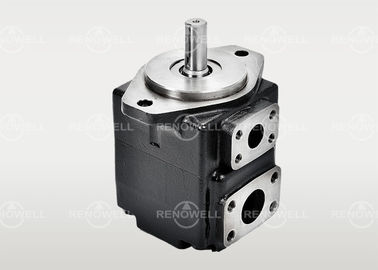

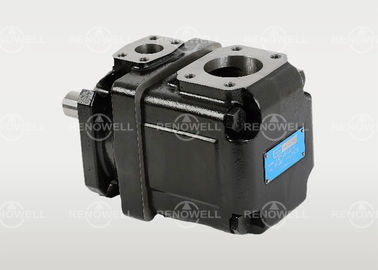

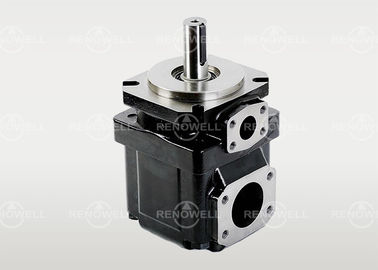

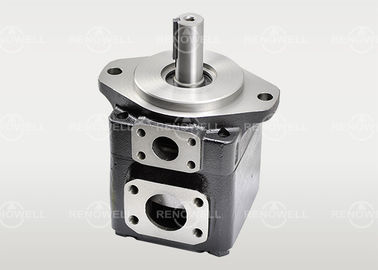

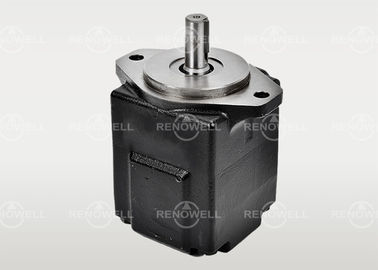

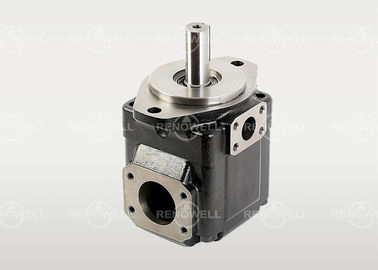

T6 T7 Single Vane Pump T6CM B08 1R 00 C100 With Dowel Pin Vane Structure

Large Image : T6 T7 Single Vane Pump T6CM B08 1R 00 C100 With Dowel Pin Vane Structure

Product Details:

Place of Origin:	CHINA
Brand Name:	RENOWELL
Certification:	CE, ISO9001
Model Number:	6C B03 B05 B06 B08 B10 B12 B14 B17 B20 B22 B25 B28 B31

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	2-5 Working days for sample Order
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000 UNITS / MONTH

Contact Now

Detailed Product Description

Condition:	New Aftermarket Replacement	Structure Type:	Hydraulic Vane Pump
Standard:	Standard As Original	Power:	Hydraulic
Pressure:	High Pressure	Noise:	Low Noise
Single Pump Model:	T6C B03 B05 B06 B08 B10 B12 B14 B17 B20 B22 B25 B28 B31	Max Pressure:	28Mpa
Max Rotation Speed:	2800 R/min	Application:	Engineering Machinery, Rubber And Plastics Machinery Etc
Warranty:	1 Year	Sample Order:	Acceptable

T6CM-B08-1R-00-C100 Single Vane Pump T6 T7 Single Hydraulic Pump for sale

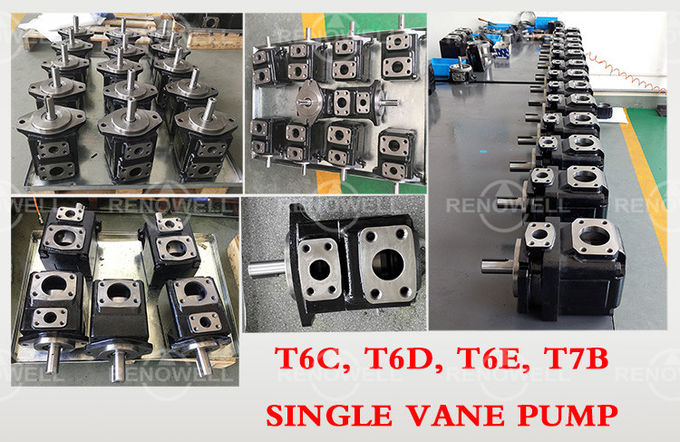

Denison T6 Series Single Vane Pump:

T6C, T6CM ,T6D, T6DM, T6E,T6EM,T7B, T7D

Single Denison vane pumps series: T7BS – T6C – T6D – T7DS, T6E, T7E

Double Denison vane pumps series: T67CB, T6CC, T6DC, T67EB, T6EC, T6ED

Triple Denison vane pumps series: T67DCB,T67DBB,T67DDBS, T6DCC, T6DDC,T6EDC,T67EDB

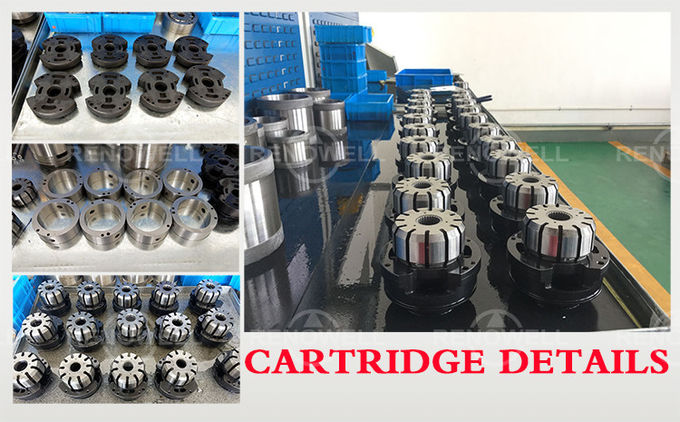

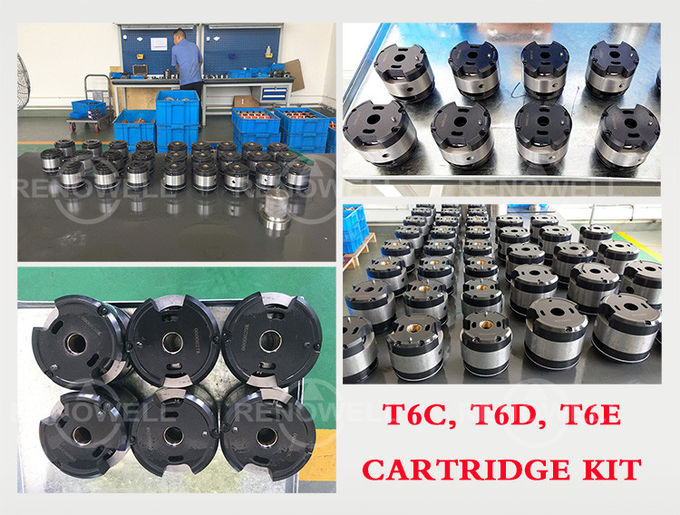

Denison Cartridge Kits type: T6C, T6D, T6E, T7B, T7D, T7E

T6C B03 B05 B06 B08 B10 B12 B14 B17 B20 B22 B25 B28 B31

T6D B14 B17 B20 B24 B28 B31 B35 B38 B42 B45 B50 B61

T6E B42 B45 B50 B52 B57 B62 B66 B72 B85

T7B B02 B03 B04 B05 B06 B07 B08 B10 B12 B15

T7D B14 B17 B20 B22 B24 B28 B31 B35 B38 B42 B45 B50

High pressure and high performance dowel pin type vane pumps are widely used for plastic machinery, casting machinery, metal machinery, pressing machinery, refining machinery, construction machinery, marine-Machinery.

Features

1. With dowel pin vane structure, it can work in high pressure, low noise and long lifetime.
2. This vane pump can fit side viscosity hydraulic medium, and be started at low temperature and work at high temperature.
3. As the vane pump adopts bilabial structure vane, it has high oil polution resistance and wide speed scope.

4. All parts can be replaced with the original , including cartridge kits, Shafts, Seals, Bearings and other parts.

	T6 T7 Single Pump Exploded View
NO.	Part
1	shaft
2	Straight Key
3	Front cover
4	Shaft Seal
5	cir clip for shaft
6	Ball Bearing
7	cir clip for hole
8	rectangle seal ring
9	Cartridge Kits
10	rear cover
11	Hexagon head bolt

Technic data

T7BS	0	-1	R	0	-A	1	1
Series	Flow Code	Shaft type	Rotation	Outlet position	Design No.	Sealing level	Port Dimensions
T7B T7BS	B03, B04, B05, B06, B07, B08, B10, B12, B15	See of shaft code	R or L	View from shaft end	A	1-S1 Nitril rubber	00 or 01 See Installation dimensions
T7B T7BS	B03, B04, B05, B06, B07, B08, B10, B12, B15			00-opposite of inlet port		5-S5 Fluono or Viton rubber	00 or 01 See Installation dimensions
T7D T7DS	B14, B17, B20, B22, B24, B28, B31, B35, B38, B42			01-inline with inlet port			No option
T6C	B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31			02-90 CCW turn from inlet
T6D	B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61			03-90 CW turn from inlet
T6E	B42, B45, B50, B52, B57, B62, B66, B72, B85
