T6CC T6DC T6EC Denison Hydraulic Pump Cartridge Kit, Single Vane Pump Repair Kit
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New Aftermarket Replacement | Structure Type: | Hydraulic Vane Pump |
|---|---|---|---|
| Standard: | Standard As Original | Power: | Hydraulic |
| Pressure: | High Pressure | Noise: | Low Noise |
| Max Pressure: | 28Mpa | Max Rotation Speed: | 2800 R/min |
| Application: | Engineering Machinery, Rubber And Plastics Machinery Etc | Warranty: | 1 Year |
| Sample Order: | Acceptable |
T6CC T6DC T6EC Denison Hydraulic Pump Cartridge Kit, Single Vane Pump Repair Kit
Denison T6 Series Single Vane Pump:
T6C, T6CM ,T6D, T6DM, T6E,T6EM,T7B, T7D
T6C B03 B05 B06 B08 B10 B12 B14 B17 B20 B22 B25 B28 B31
T6D B14 B17 B20 B24 B28 B31 B35 B38 B42 B45 B50 B61
T6E B42 B45 B50 B52 B57 B62 B66 B72 B85
T7B B02 B03 B04 B05 B06 B07 B08 B10 B12 B15
T7D B14 B17 B20 B22 B24 B28 B31 B35 B38 B42 B45 B50
Technic data
| T7BS | 0 | -1 | R | 0 | -A | 1 | 1 |
| Series | Flow Code | Shaft type | Rotation | Outlet position | Design No. | Sealing level | Port Dimensions |
| T7B T7BS | B03, B04, B05, B06, B07, B08, B10, B12, B15 | See of shaft code | R or L | View from shaft end | A | 1-S1 Nitril rubber | 00 or 01 See Installation dimensions |
| 00-opposite of inlet port | 5-S5 Fluono or Viton rubber | ||||||
| T7D T7DS | B14, B17, B20, B22, B24, B28, B31, B35, B38, B42 | 01-inline with inlet port | No option | ||||
| T6C | B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31 | 02-90 CCW turn from inlet | |||||
| T6D | B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61 | 03-90 CW turn from inlet | |||||
| T6E | B42, B45, B50, B52, B57, B62, B66, B72, B85 |

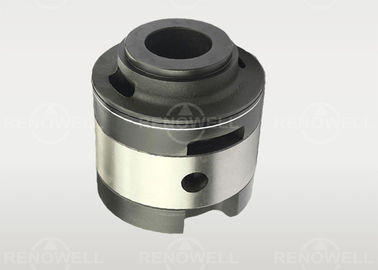

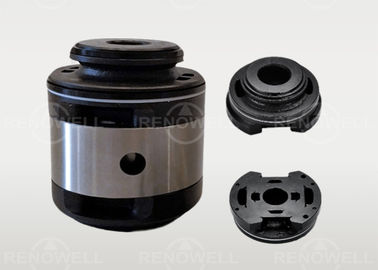

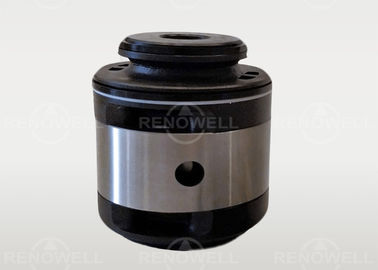

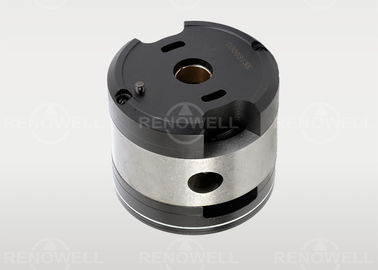

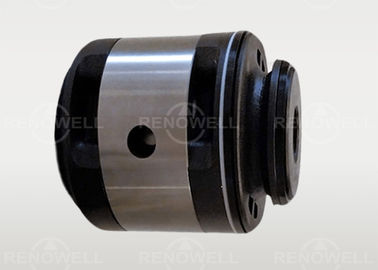

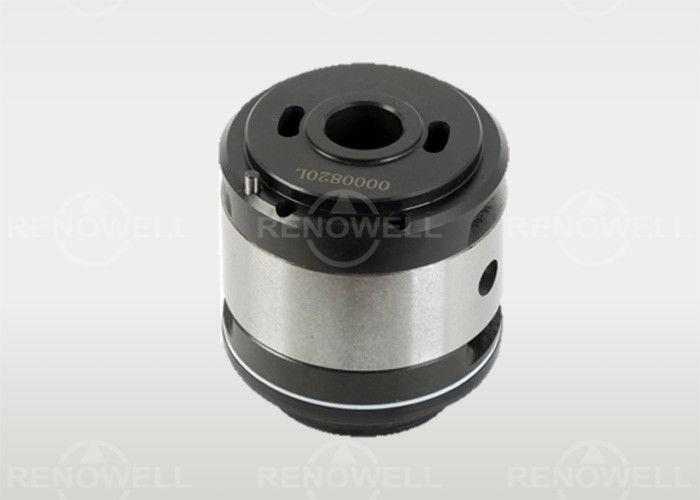

Products Pictures
