T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure

Certification
Good quality Denison Vane Pumps for sales
Good quality Denison Vane Pumps for sales
I'm Online Chat Now

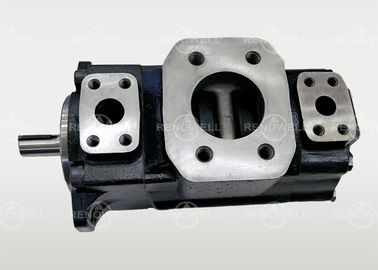

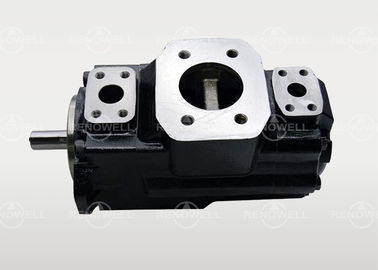

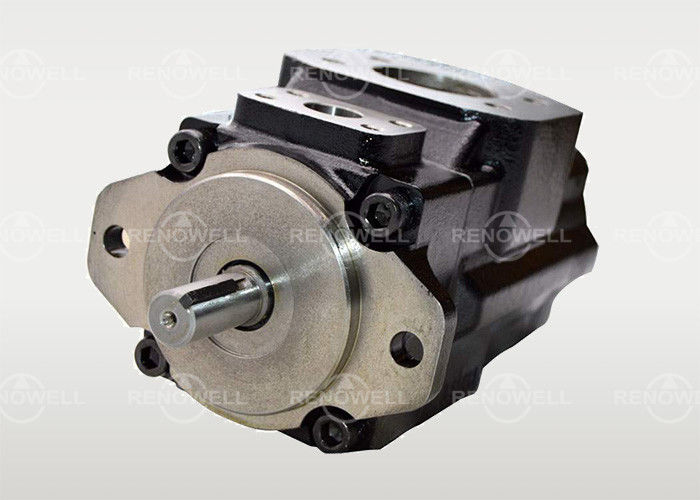

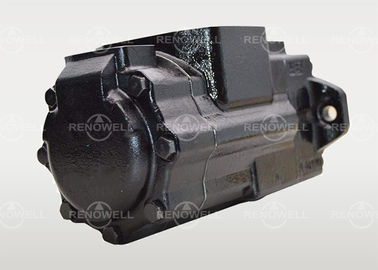

T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure

China T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure supplier
T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure supplier T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure supplier T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure supplier T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure supplier

Large Image :  T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure

Product Details:

Place of Origin: CHINA
Brand Name: RENOWELL
Certification: CE, ISO9001
Model Number: T6CCMW B22 B10 XL** D100

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 2-5 Working days for sample Order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 UNITS / MONTH
Contact Now
Detailed Product Description
Condition: New Aftermarket Replacement Structure Type: Hydraulic Vane Pump
Standard: Standard As Original Power: Hydraulic
Pressure: High Pressure Noise: Low Noise
Pump Model: T6CCMW B22 B10 XL** D100 Max Pressure: 28Mpa
Max Rotation Speed: 2200 R/min Application: Engineering Machinery, Rubber And Plastics Machinery Etc
Warranty: 1 Year Sample Order: Acceptable

T6CCMW B22 B10 XL** D100 Double Vane Pump Fixed Hydraulic Pump for sale

T6CC PUMP TYPE:

T6CC, T6CCM, T6CCW, T6CCZ, T6CCP


T6CC, T6CCM, T6CCW, T6CCZ, T6CCP High pressure and high performance dowel pin type vane pumps are widely used for plastic machinery, casting machinery, metal machinery, pressing machinery, refining machinery, construction machinery, marine-Machinery.



Features



1. With dowel pin vane structure, it can work in high pressure, low noise and long lifetime.
2. This vane pump can fit side viscosity hydraulic medium, and be started at low temperature and work at high temperature.
3. As the vane pump adopts bilabial structure vane, it has high oil polution resistance and wide speed scope.

4. All parts can be replaced with the original , including cartridge kits, Shafts, Seals, Bearings and other parts.



  T6 T7 Double Pump Exploded View
NO. Part T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure
1 Shaft
2 Straight Key
3 Hexagon head bolt
4 Front cover
5 Shaft Seal
6 Cir clip for shaft
7 Ball Bearing
8 Cir clip for hole
9 Rectangle seal ring
10 Front Cartridge
11 Middle body
12 Rear Cartridge
13 Rectangle seal ring
14 Rear Cover
15 Hexagon head bolt



Technic data

T6CC -25 -17 -1 R 2 -C 1 10
Series Flow Code Flow Code Shaft type Rotation Outlet position Design No. Sealing level Port Dimensions
T7BB T7BBS B03, B04, B05, B06, B07, B08, B10, B12, B15 B03, B04, B05, B06, B07, B08, B10, B12, B15 See of shaft code R or L See pictures C 1-S1 Nitril rubber 00 or 01 See Installation dimensions
5-S5 Fluono or Viton rubber
T67CB B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31 B03, B04, B05, B06, B07, B08, B10, B12, B15 No option
T6CC B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31 B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31 00, 01, 10,11 See Installation dimensions
T67DB B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61 B03, B04, B05, B06, B07, B08, B10, B12, B15
T6DC B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61 B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31
T67EB B42, B45, B50, B52, B57, B62, B66, B72, B85 B03, B04, B05, B06, B07, B08, B10, B12, B15
T6EC B42, B45, B50, B52, B57, B62, B66, B72, B85 B03, B05, B06, B08, B10, B12, B14, B17, B20, B22, B25, B28, B31
T6ED B42, B45, B50, B52, B57, B62, B66, B72, B85 B14, B17, B20, B22, B24, B28, B31, B35, B38, B42, B45, B50, B61















































Application
T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure
Products Show:
T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure
T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane StructureT6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure
Workshop & assembly processing
Suzhou Renowell Hydraulic Pump Co.,Ltd specialize in research and development, production and sales of high-end
hydraulic pump products. The main products of our company are: Dennison T6, T7 series vane pumps; Vickers V, VQ
series, V10, V20 series vane pumps; Tokimec SQP series vane pumps; Yuken PV2R series hydraulic vane pumps; PGH4,
PGH5 series gear pumps; high pressure piston pumps and parts.
T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane StructureT6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane StructureT6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure
Exhibition Show
T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane StructureT6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure
Certiicate
T6CCMW B22 B10 Denison Vane Pumps With Dowel Pin Vane Structure
