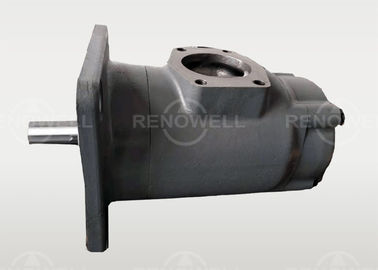

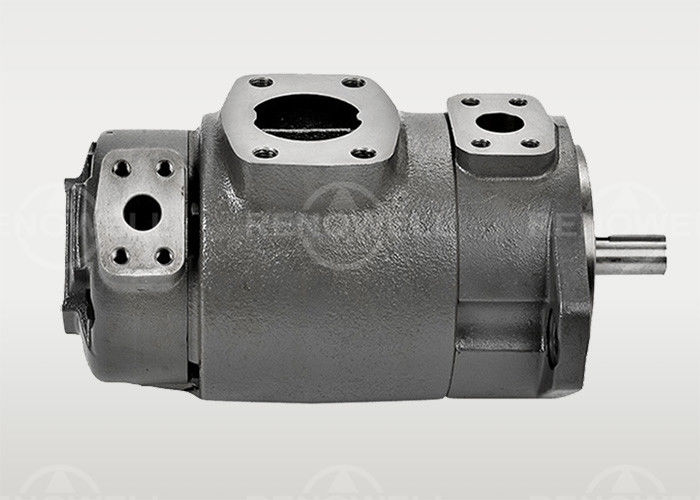

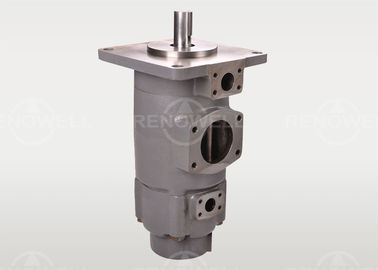

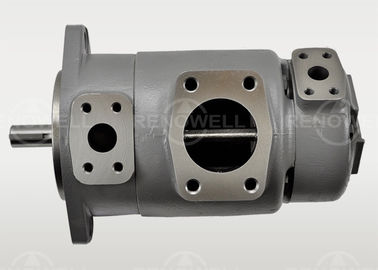

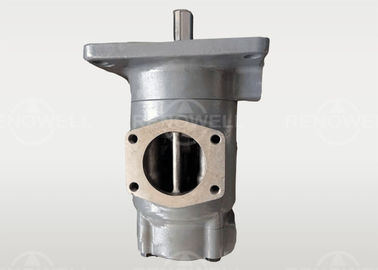

Replacement High Pressure Vane Pump SQP21 SQP31 SQP41 For Plastic Injection Machinery
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New Aftermarket Replacement | Structure Type: | Hydraulic Vane Pump |
|---|---|---|---|
| Standard: | Standard As Original | Power: | Hydraulic |
| Pressure: | High Pressure | Noise: | Low Noise |
| Max Pressure: | 21 Mpa | Max Rotation Speed: | 2700 R/min |
| Application: | Engineering Machinery, Rubber And Plastics Machinery Etc | Warranty: | 1 Year |
| Sample Order: | Acceptable |
SQP21, SQP31, SQP41 Replacement Vane Pump Tokimec Hydraulic pump
Characteritics
High Performance Intravane Pumps for plastic injection machinery, Shoe machinery, Tool machinery, Die casting machinery and Metallurge equipment.
1.Intravane pumps with hydraulic balancing structure provide more stable performance and longer life since less pressure from vane on stator.
2.Twelve vane system provide low amplitude flow pulsation resulting in low system noise characteristics.
3.Verious displacement and shafts with 4 different outlet opposite position make operation more flexible.
4.The cartridge is independent of the drive shaft, allowing for easy servicing without remore the pump from its mounting.
Hydraulic vane pump are widely used in Heavy equipments, Mining machinery,Rubber & Plastic machinery, Shoes machinery, Die Casting Machinery, Metallurgical machinery, Metal Cutting Machinery and other types of hydraulic systems.
| Series | Code | Geo metric displacement | Min speed | Using antiwar hydraulic oil or phosphate ester fluid | Using water-in-oil emulsions | Using water glycol fluid | Weight kg | ||||
| cc/r | (rpm) | ||||||||||
| (in2 /r) | Max. speed | Operating pressure | Max. speed | Operating pressure | Max. speed | Operating pressure | Flange mounting | Foot mounting | |||
| (rpm) | (Mpa) | (rpm) | (Mpa) | (rpm) | (Mpa) | ||||||
| 2 | 7.5(0.46) | 600 | 1800 | 14 | 14 | 16 | 19 | ||||
| 3 | 10.2(0.62) | 14 | 1500 | ||||||||
| 4 | 12.8(0.78) | 21 | 1200 | 16 | |||||||
| 5 | 18(1.10) | ||||||||||
| 6 | 19.2(1.17) | ||||||||||
| 7 | 22.9(1.40) | ||||||||||
| 8 | 27(1.67) | ||||||||||
| SQP1 | 9 | 30(1.85) | |||||||||
| 10 | 31(1.89) | ||||||||||
| 11 | 36(2.22) | ||||||||||
| 12 | 40(2.49) | 16 | 14 | ||||||||
| 14 | 45(2.78) | 14 | |||||||||
| 10 | 33(2.01) | 600 | 1800 | 1200 | 14 | 1500 | 25 | 34.5 | |||
| 12 | 39(2.47) | ||||||||||
| 14 | 45(2.78) | 17.2 | 16 | ||||||||
| 15 | 46.7(2.85) | ||||||||||
| SQP2 | 17 | 55(3.39) | |||||||||
| 19 | 59.2(3.61) | ||||||||||
| 21 | 67(4.13) | ||||||||||
| 25 | 78.6(4.79) | 14 | 14 | ||||||||
| 17 | 53.3(3.25) | 600 | 1800 | 1200 | 14 | 1500 | 35 | 44.5 | |||
| 21 | 66.7(4.07) | 17.2 | 16 | ||||||||
| 25 | 81(4.94) | ||||||||||
| 30 | 97(5.91) | ||||||||||
| SQP3 | 32 | 100(6.10) | |||||||||
| 35 | 112(6.83) | ||||||||||
| 38 | 121(7.37) | ||||||||||
| 42 | 134(8.17) | 14 | 14 | ||||||||
| 30 | 96(5.86) | 600 | 1800 | 1200 | 14 | 1500 | 59.5 | 84.5 | |||
| 35 | 109(6.65) | 16 | |||||||||
| 38 | 128(7.81) | ||||||||||
| 42 | 138(8.41) | 17.2 | |||||||||
| 45 | 147(8.95) | ||||||||||
| SQP4 | 50 | 162(9.85) | |||||||||
| 60 | 193(11.75) | ||||||||||
| 67 | 210(12.81) | 16 | |||||||||
| 75 | 236(14.4) | 14 | 14 |
