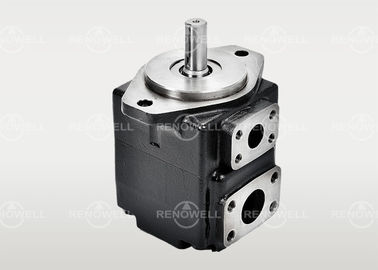

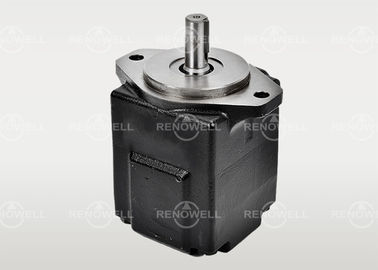

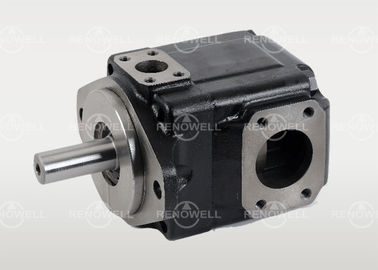

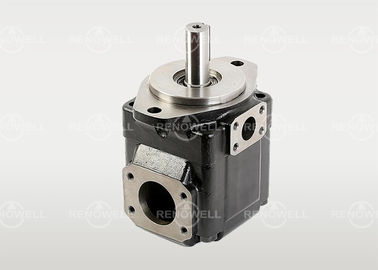

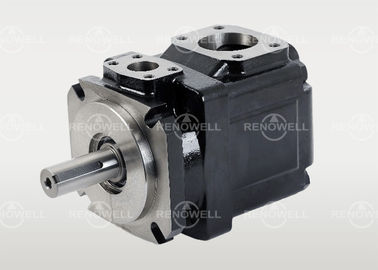

High Pressure T7DS-E Servo Vane Pump Servo Pump For Injection Molding Machine

Super High Pressure Servo Vane Pumps, applicable to Servo hydraulic system

1. Adopt the flexible structure with a spring between the bottom of the vanes and the slot, in ordere to

start at low speed,applicable to servo hydraulic system.

2. Adopt pin type and double lips vane structure, suitable to the fast switching of high and low speed,

right and left rotation working status of the servo pumps.

3. The product is developed based on the T7 series pin type vane pumps, with higher pressure , the

maximum pressure can reach 32MPA; With higher volume efficiency, the maximum can reach more than

95%; lower noise level and the minimum noise is 62db

4 The products is with mature technology, reliable and strong anti-pollution , applicable to the hydraulic

systems with anti-wear hydraulic oil fluid

5. Flexible for installing , there are many inlet and outlet port positions for choice.

6.Insert cartridge kit structure,very convenient for repair.

Main Parameter
