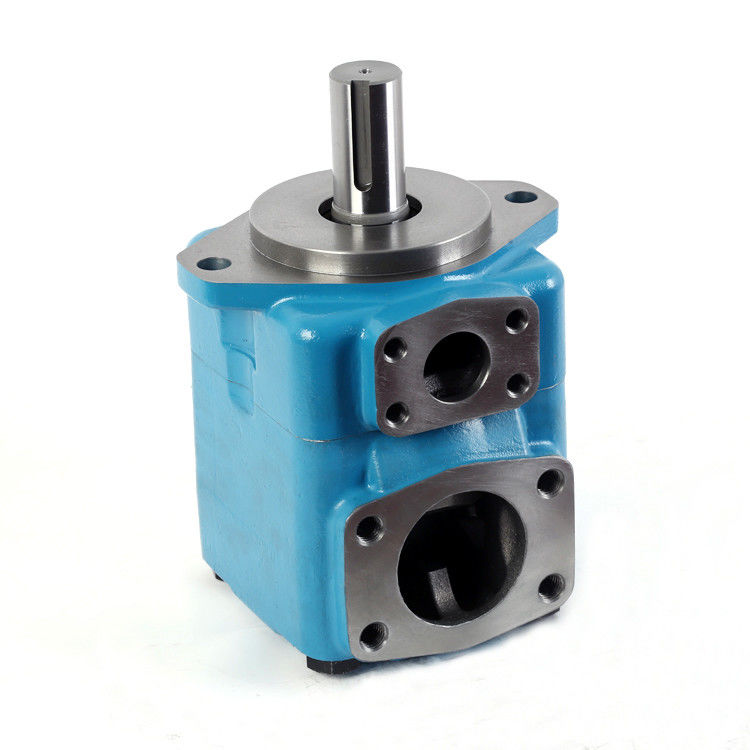

Vickers Hydraulic Rotary Vane Pump Single Pump

Large Image : Vickers Hydraulic Rotary Vane Pump Single Pump

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Renowell
Model Number:	Vickers V/ VQ

Payment & Shipping Terms:

Minimum Order Quantity:	1 - 9999 Pieces
Price:	Negotiable
Packaging Details:	Standard Export Package
Supply Ability:	2000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Structure:	Vane Pump	Usage:	Hydraulic Vane Pump
Application:	Engineering Machinery, Rubber And Plastics Machinery Etc	Power:	Hydraulic
Fuel:	Diesel	Pressure:	High Pressure
Condition:	New	Color:	Blue
Sample Order:	Acceptable	Single Pump:	20V,25V,35V,45V,20VQ,25VQ,35VQ
Double Pump:	2520V/VQ,3525V/VQ,3520V/VQ,4520V/VQ,4525V/VQ,4535V/VQ	Warranty:	One Year Guarantee
Package:	Standard Export Package	Max Speed:	1800 R/min
Max Operation Pressure:	20.7 Mpa	Keywords:	Vickers Hydraulic Rotary Vane Pump Single Pump
Standard Or Nonstandard:	Standard	Theory:	Rotary Pump
Port:	Shanghai Port

Vickers Hydraulic Rotary Vane Pump Single Pump

Product Description

Same connecting dimension, but lower noise and better performance than original Vickers pump.

All parts can be replaced with the original , including cartridge kits, Shafts, Seals, Bearings and other parts.

V series Pump:
20V, 25V, 35V, 45V, 2520V, 3520V, 3525V, 4520V, 4525V, 4535V

VQ Series pump:
20VQ, 25VQ, 35VQ, 45VQ, 2520VQ, 3520VQ, 3525VQ, 4520VQ, 4525VQ, 4535VQ

Usage :
Hydraulic vane pump are widely used in Heavy equipments, Mining machinery,Rubber & Plastic machinery, Shoes machinery, Die Casting Machinery, Metallurgical machinery, Metal Cutting Machinery and other types of hydraulic systems.

Features

Characteritics
High Performance Intravane Pumps for plastic injection machinery, Shoe machinery, Tool machinery, Die casting machinery and Metallurge equipment.
1.Intravane pumps with hydraulic balancing structure provide more stable performance and longer life since less pressure from vane on stator.
2.Twelve vane system provide low amplitude flow pulsation resulting in low system noise characteristics.
3.Verious displacement and shafts with 4 different outlet opposite position make operation more flexible.
4.The cartridge is independent of the drive shaft, allowing for easy servicing without remore the pump from its mounting.

F3	VQ	12	A	M	F	11	A	10	L
Refit	Series	Code	Port connection	Port connection thread	Mounting type	shaft type	outlet position	Design number	Rotation
F-Viton seal Omit if not required	20VQ	2/3/4/5/6/7/8/9/11/12/14	A-SAE 4-bolt flange	Metric thread	Flange mounting omit	1-straight	A-opposite inlet port	20	(viewed from shaft end of pump)

						keyed	B-90 CCW from inlet		L-left hand for CCW
							C- inline with inlet
	25VQ	12/14/17/19/21				86-heavy dutystraight keyed	D- CW from 90		R-right hand for CW
	35VQ	21/25/30/35/38		Inch thread omit	Foot mounting
	45VQ	42/45/47/50/60/66/75		Inch thread omit	Foot mounting	11-splined key

Technical Date

Vickers Hydraulic Rotary Vane Pump Single Pump

Company Information

Suzhou Renowell Hydraulic Pump Co.,Ltd specialize in research and development, production and sales of high-end hydraulic pump products. Our company is located in a long history and beautiful modern industrial city - Suzhou. It is about 2 hours drive from Shanghai Pudong International Airport and 45 minutes from Wuxi Shuofang Airport. The transportation is very convenient and location is very superior.

The main products of our company are: Dennison T6, T7 series vane pumps; Vickers V, VQ series, V10, V20 series vane pumps; Tokimec SQP series vane pumps; Yuken PV2R series hydraulic vane pumps; PGH4, PGH5 series gear pumps; high pressure piston pumps and parts. After detected by the authoritative state department, the performance, technical indicators of our products have reached or exceeded the similar products made by the domestic and foreign top manufacturers, and can be interchangeable, instead of imported original products. Lower noise, higher volume efficiency, longer life and reasonable price make our products have been praised by all of our domestic and overseas customers, now our products have been exported to five continents more than 30 countries and regions.
